Ramps 1.4 MosFet Upgrade

First i am going to Desolderer mosFet

Then i use a 3 pin jack to solder to the MosFet  pin holding

i am using de soldering wig to

remove the old soldering

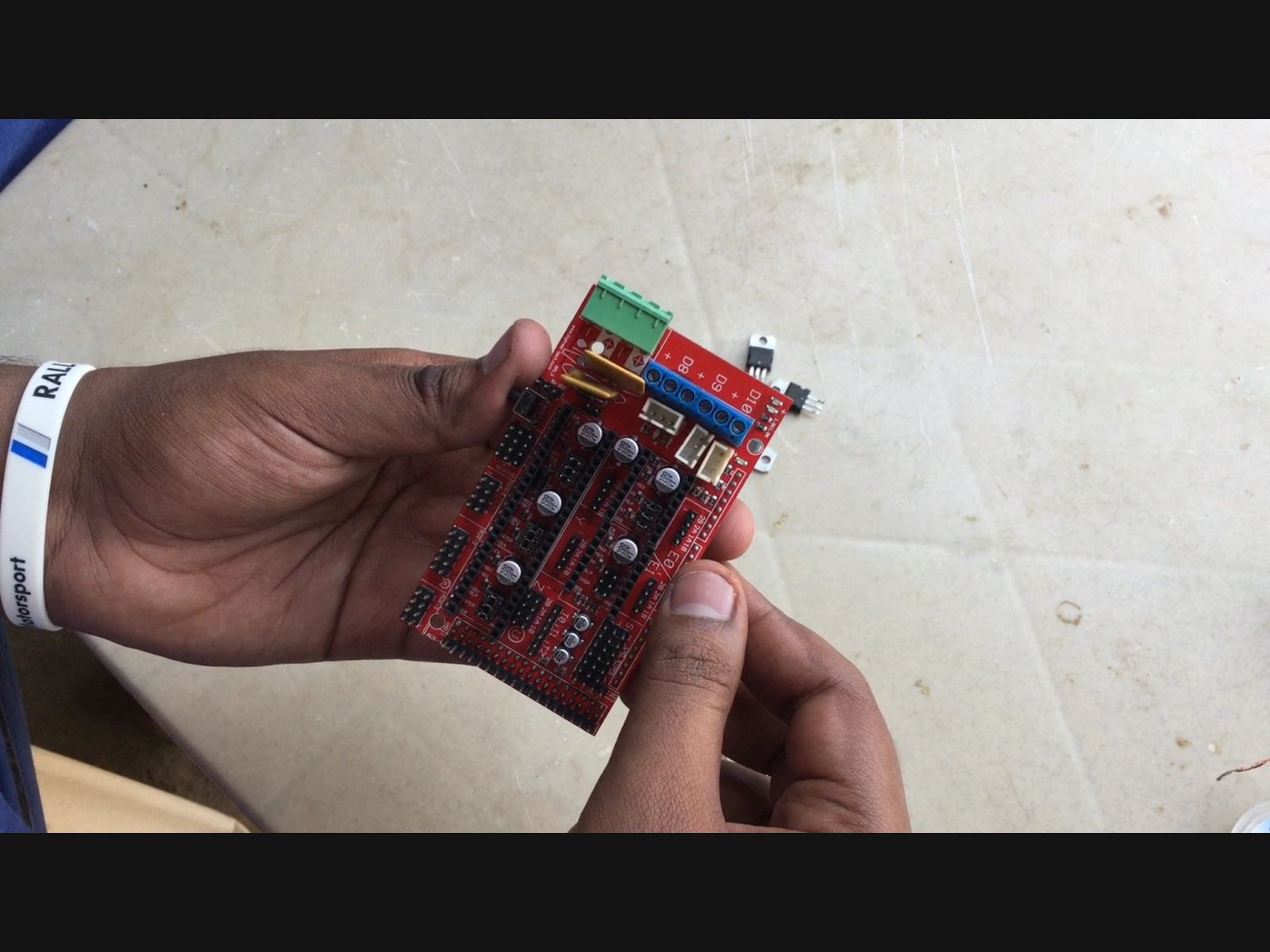

 then i take out of the mosfet from ramps 1.4 board

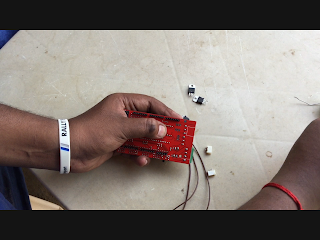

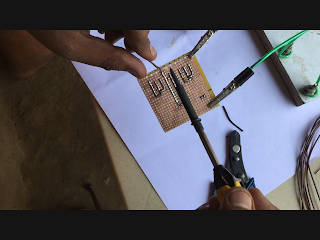

then iam soldering 3 pin jake on the ramps 1.4 board

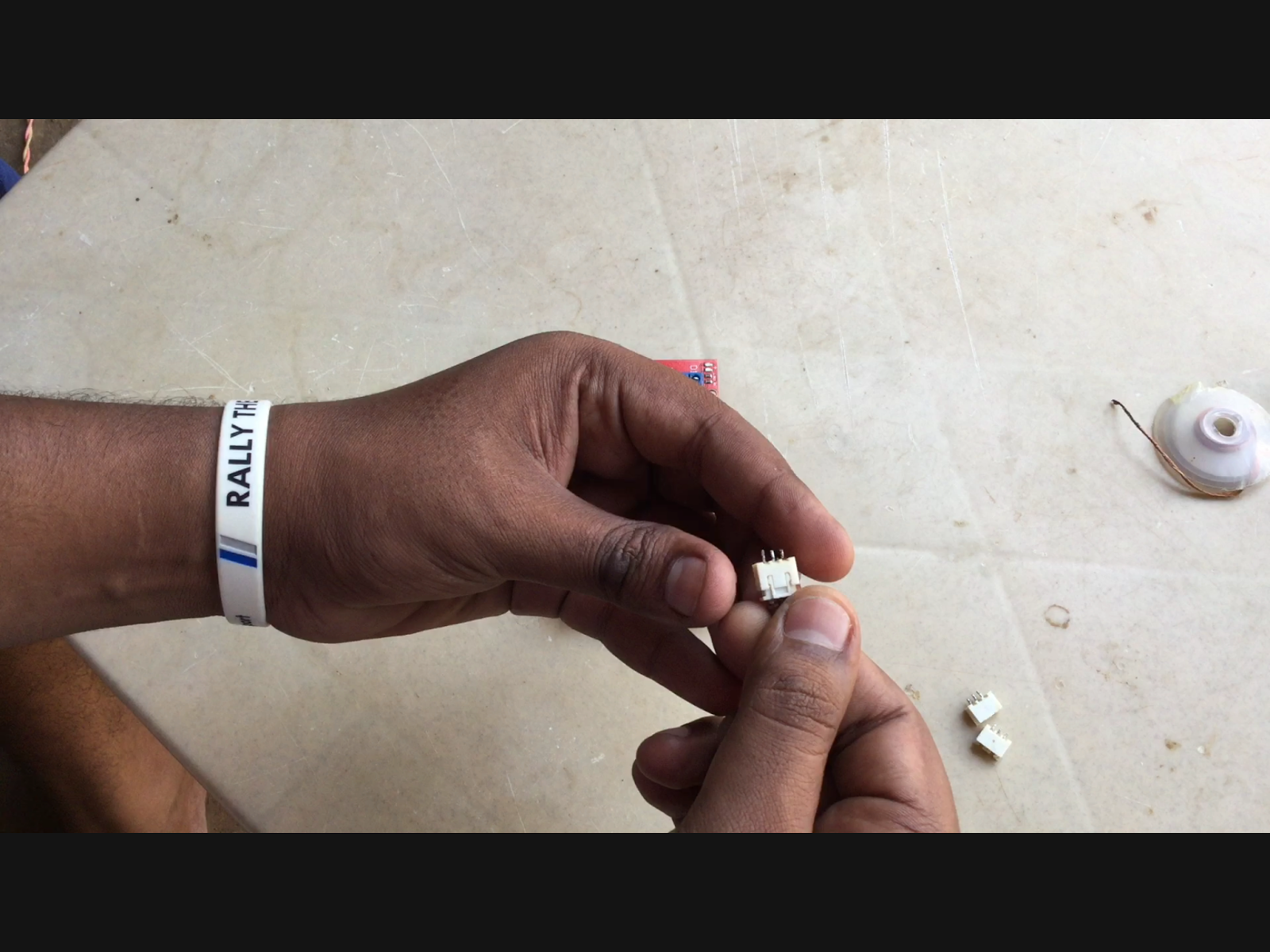

first i take the jake male heat pin and female pin then

i connect to pin correct lee then pales correctly on the

ramps 1.4 then soldering iron used to

apply a little bit of soldering past on the pin

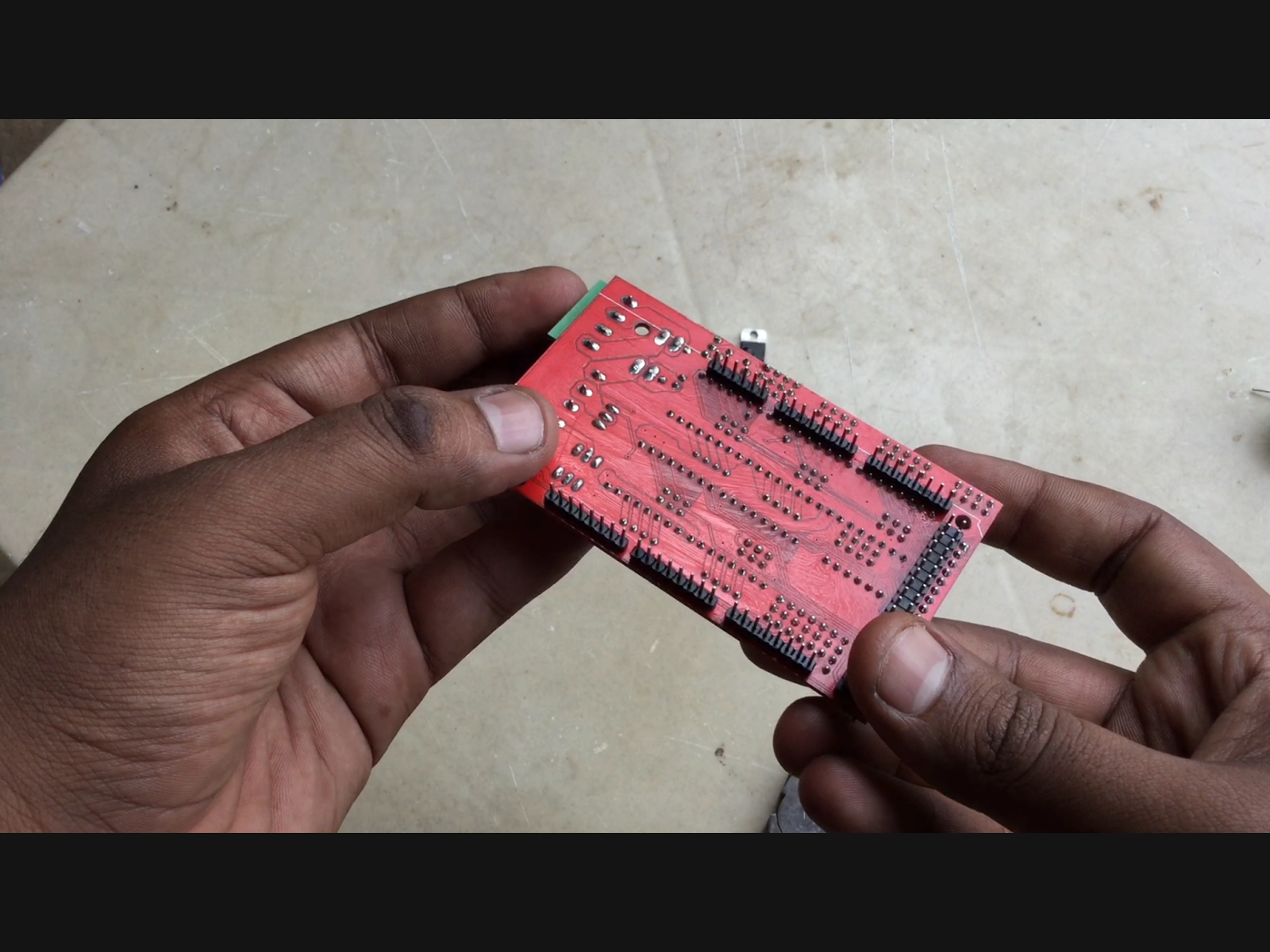

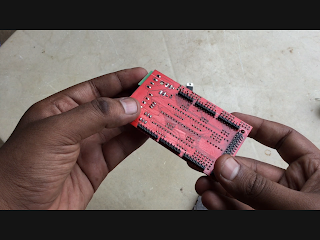

then soldering it correctly

then use cleaning solution used to clean it

then connect female pin to correctly check it

same procedure used to connect the other 2 mosfet connection

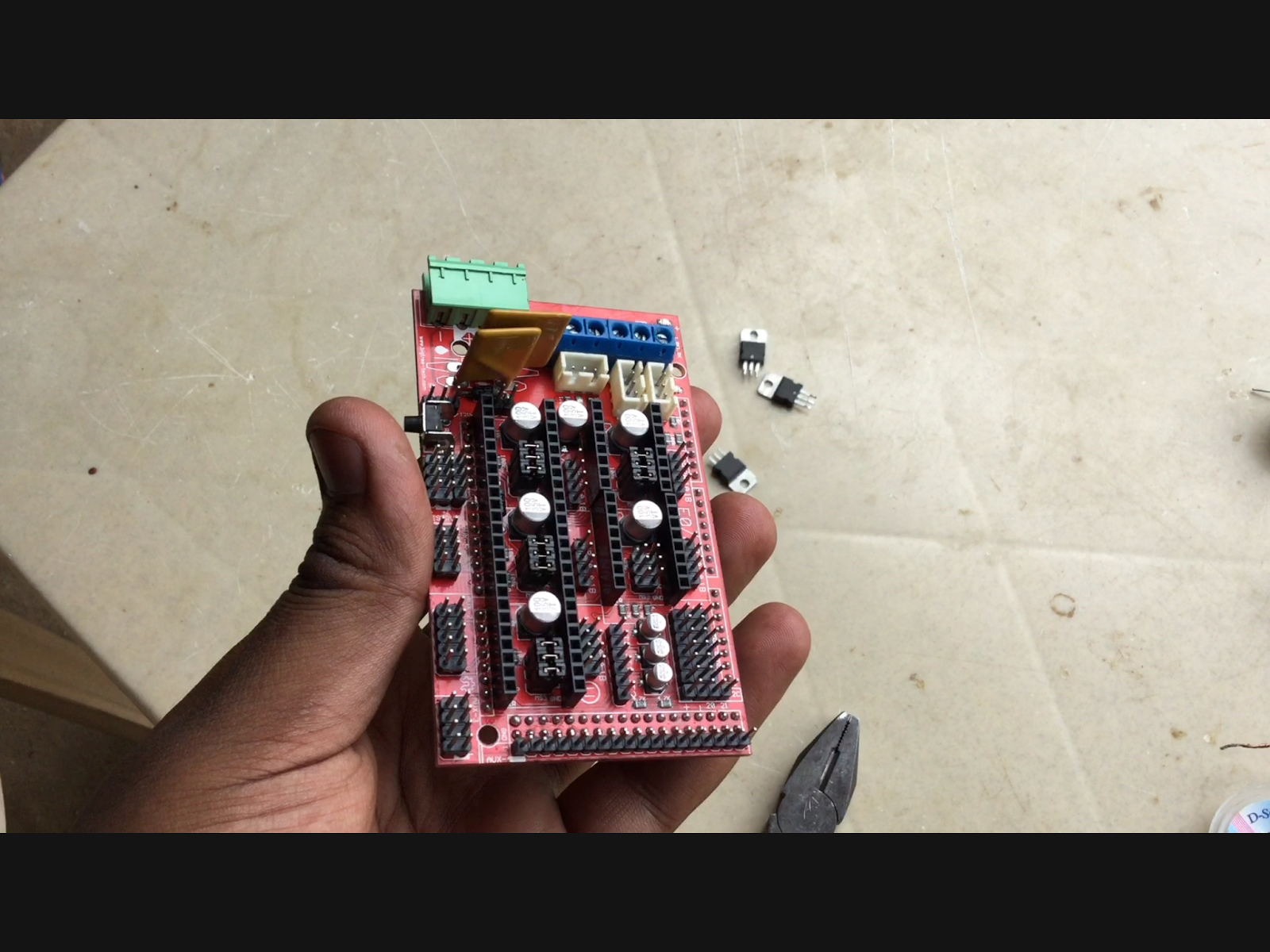

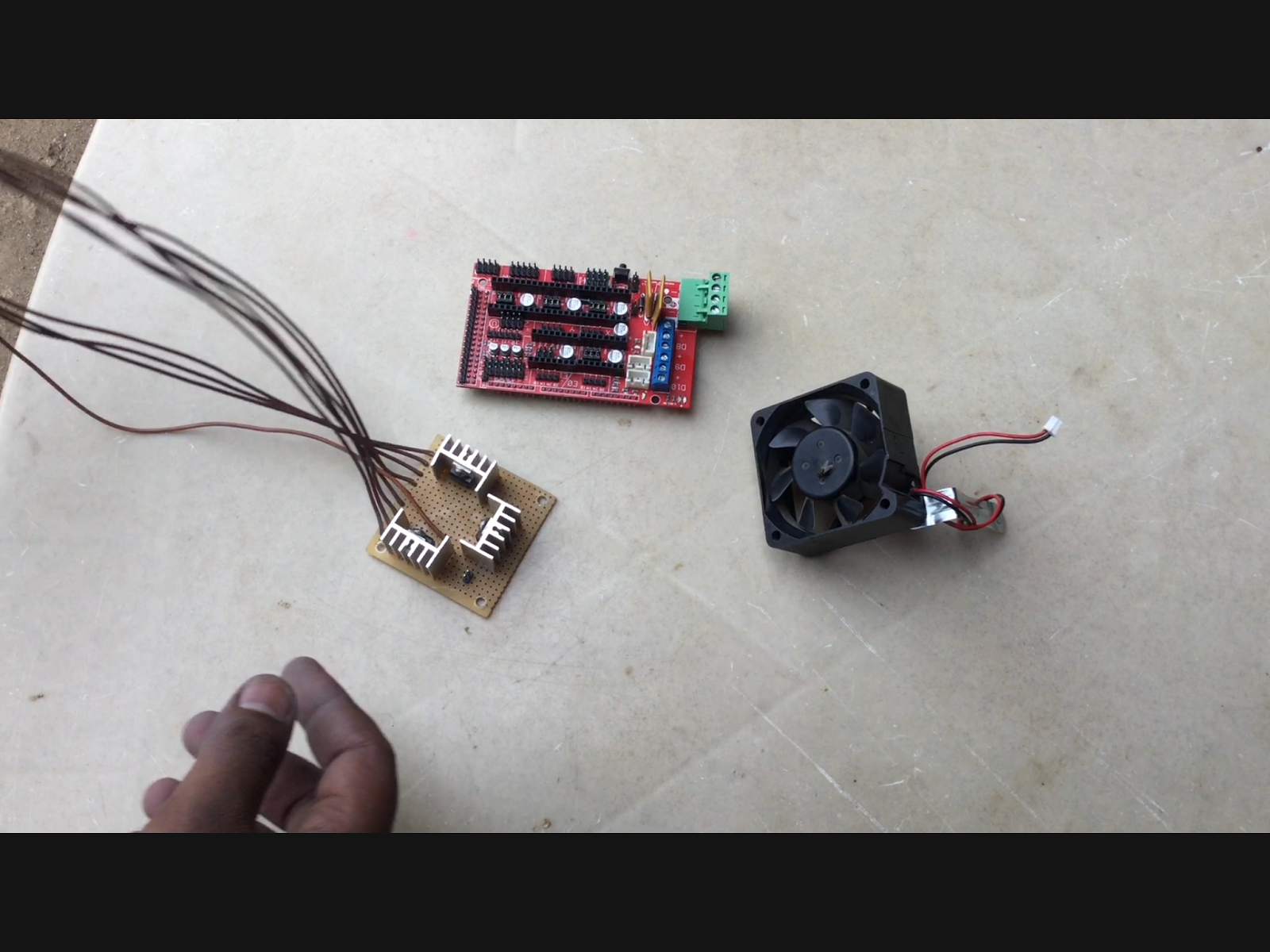

you can see i relapse the all mosfet to 3 pi jack  dont throw throw the all mosfet we use to mosfet

now i am check all connection you want Anny doubted about  please check ramps 1.4 schismatics

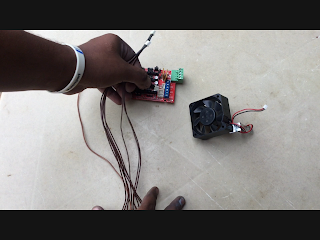

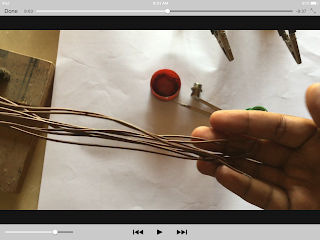

next  we have  heave gage  wire cut 9 wire in 30cm length



i am using old 3 pin jack so i remove the  all pin in the jack

first take a sharp tool to used to remove the jack pin

then cut the wire from the pin

then cut the wire

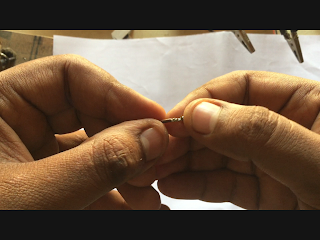

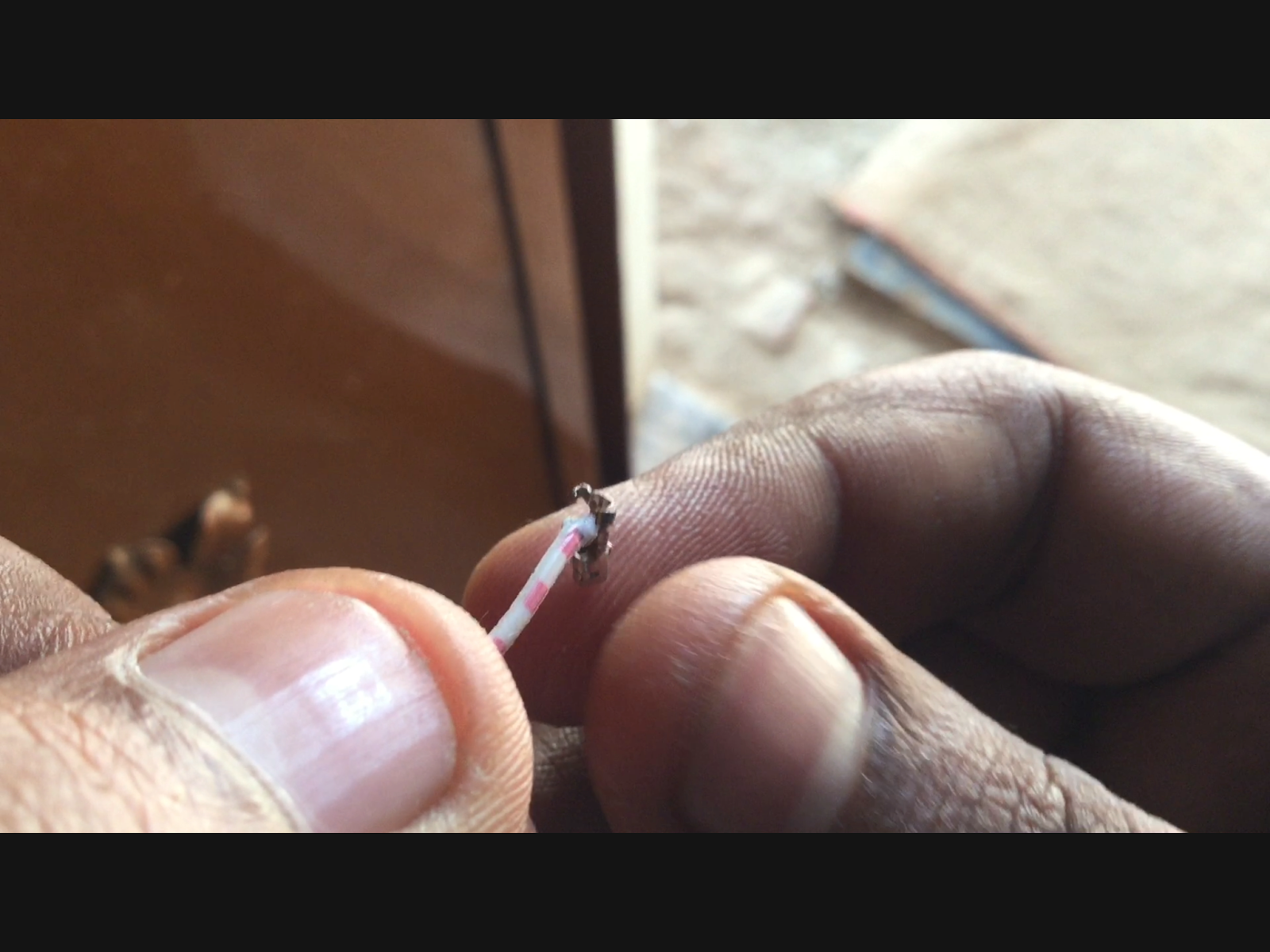

now soldering a wire on the pin

use little bit of soldering past on the wire

then soldering it easily

then add heat sering tube on a wire

then use liter or soldering iron used to sering a tube

then i pales  the pin  on the jack

the heat sering tube used to
